حالة جزء · Metal 3D Printing
تفاصيل قوس مطبوع بشبكة وزعانف

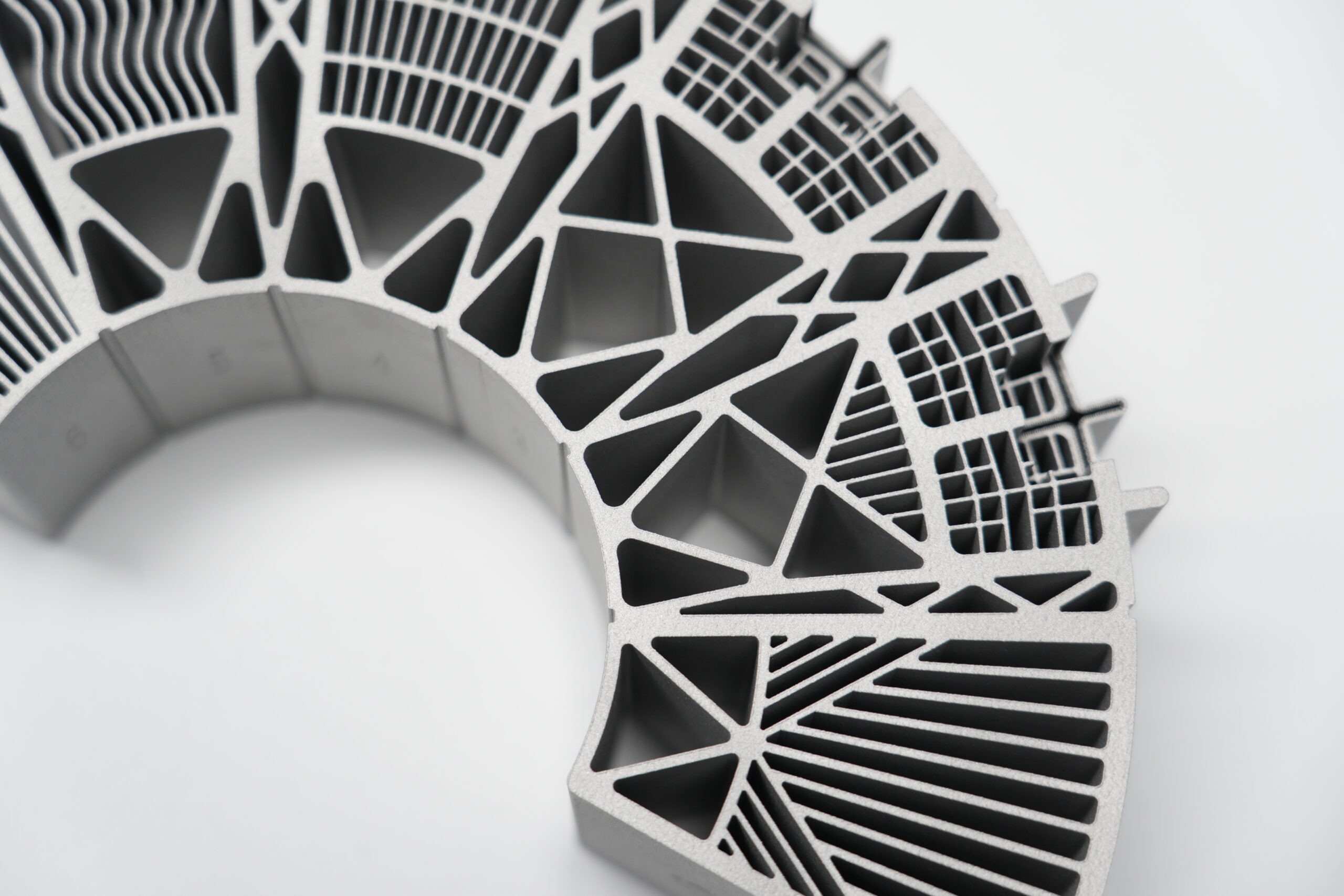

Close-up of a segmented metal AM arch showing lattice trusses beside wavy fin / channel coupons — for RFQ talk on powder escape and which segments are structural versus thermal studies.
Detail-view framing
A close-up helps call minimum strut thickness, fin pitch class, and flush direction without ranking segment performance.
- Mark which segments are first articles versus geometry studies
- Keep any section labels you need for quoting
What we will not invent
No thermal-resistance numbers, no fluid names beyond what you specify, and no invented pressure ratings on this page.
المواصفات النموذجية
لمحة سريعة
| Item | القيمة النموذجية |
|---|---|
| Process | Metal AM segmented sample |
| Material | Al or Ti alloy |
| Form | Lattice + fin arch detail |
| Features | Truss lattice beside wavy fins |
| Post | Powder flush between cells / fins |
الخطوة التالية
هل لديك دور مشابه ؟
رفع CAD والرسومات. يقوم المهندس بمراجعة المواد والتفاوتات والتشطيب قبل التسعير.
