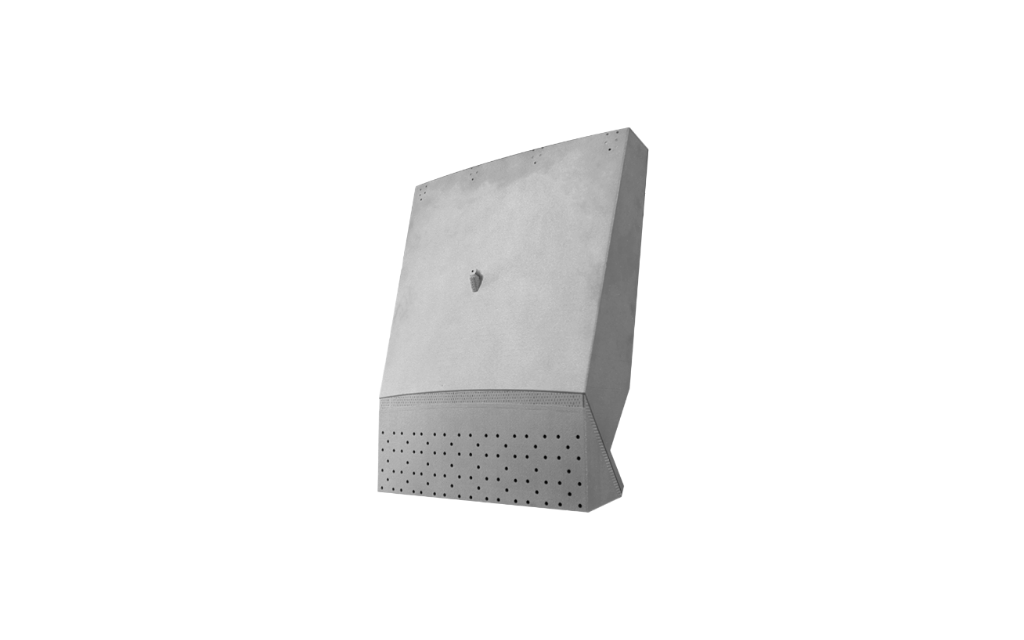

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK example page — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal powder-bed fusionمثال · قيد التأكيد / 「示例、待确认」
MaterialAl or Ni alloyمثال · قيد التأكيد / 「示例、待确认」
FormWedge housing, perforated faceمثال · قيد التأكيد / 「示例、待确认」
PortsConical boss / face gridمثال · قيد التأكيد / 「示例、待确认」
| Item | Typical value | Note |
|---|---|---|
| Post | Support removal, optional CNC seals | مثال · قيد التأكيد / 「示例、待确认」 |
Design intent
This example shows a hollow wedge body where a face grid and a small port share one printed blank.
- Keep seal lands thick enough for post-machining if leak-tightness matters
- Confirm hole-grid diameter and pattern on the drawing
- Do not invent pressure ratings or certifications on this page
Manufacturing notes
Perforations need reliable powder removal and inspectable walls. Mark which faces are sealed.
All dimensions and alloys on this page are examples to be confirmed — not a quotation.
What to put on the RFQ
- Preferred alloy family
- Which faces are critical for flatness or leak check
- Any NDT expectations (state them; we do not invent certifications)
مثال · قيد التأكيد / 「示例、待确认」
Next step
هل لديك دور مشابه ؟
رفع CAD والرسومات. يقوم المهندس بمراجعة المواد والتفاوتات والتشطيب قبل التسعير.
