حالة جزء · Metal 3D Printing

لوحة شبكية بفتحات دقيقة مطبوعة معدنياً

Square metal AM plate with a dense grid of micro orifices and corner mounting bosses — for discussing printable micro features, inspection access, and which holes stay as-built versus reamed.

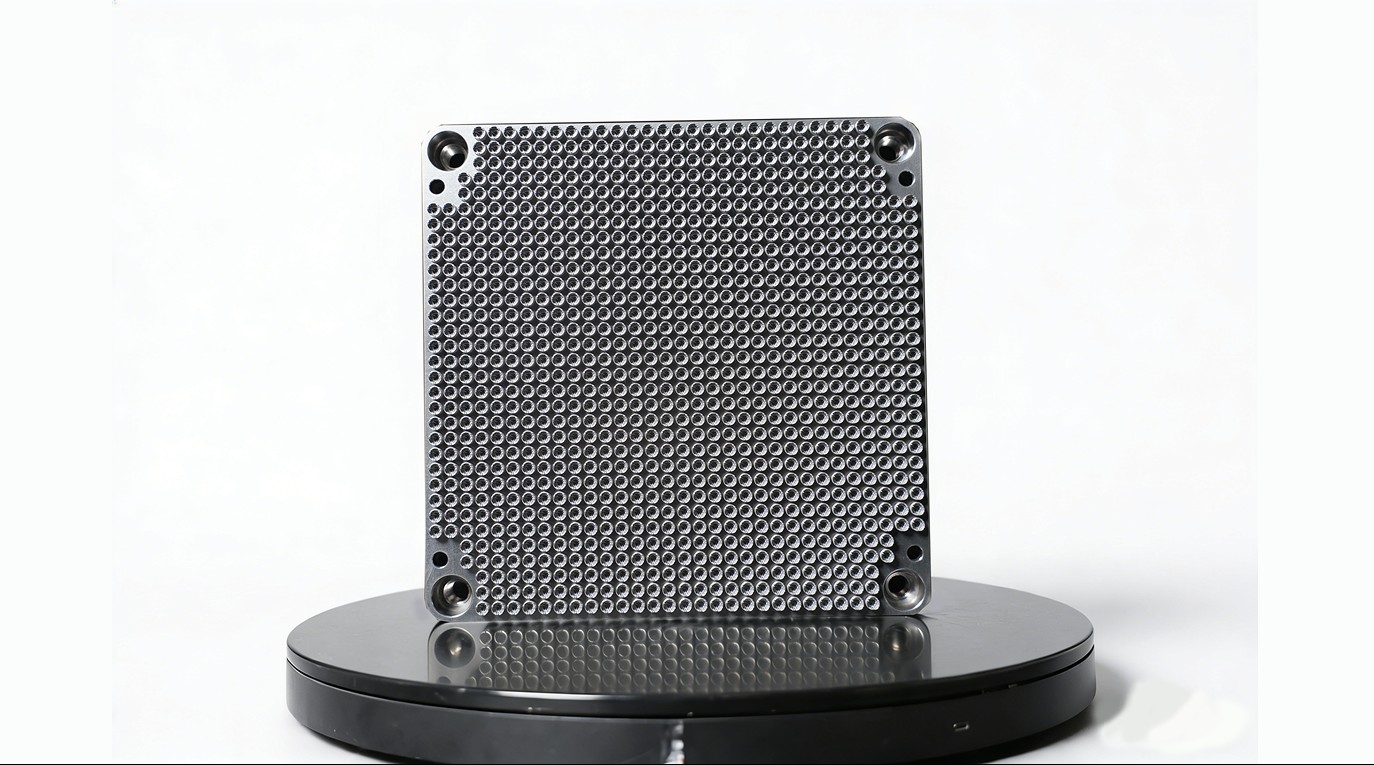

Metal additive micro-orifice grid plate with dense hole field and corner mounts
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
  1. 01

    Micro-feature mindset

    Dense orifice fields look simple from the front but need clear minimum hole size, powder-clear paths, and a plan for measuring the grid.

    • State which holes are flow-critical versus vent or cosmetic
    • Keep corner mounts solid enough for fasteners
    • Do not invent micron capability numbers on this page
  2. 02

    RFQ checklist

    Alloy, target orifice diameter class, flatness of the working face, and any cleanliness requirements you need stated.

المواصفات النموذجية

نقاط البداية لهذا الجزء

Process
High-resolution metal AM
Material
Stainless or Ti alloy
Form
Grid orifice plate + corner mounts
Features
Dense micro-hole field
Post
Optional ream / hone of critical holes
Metal additive micro-orifice grid plate with dense hole field and corner mounts
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
