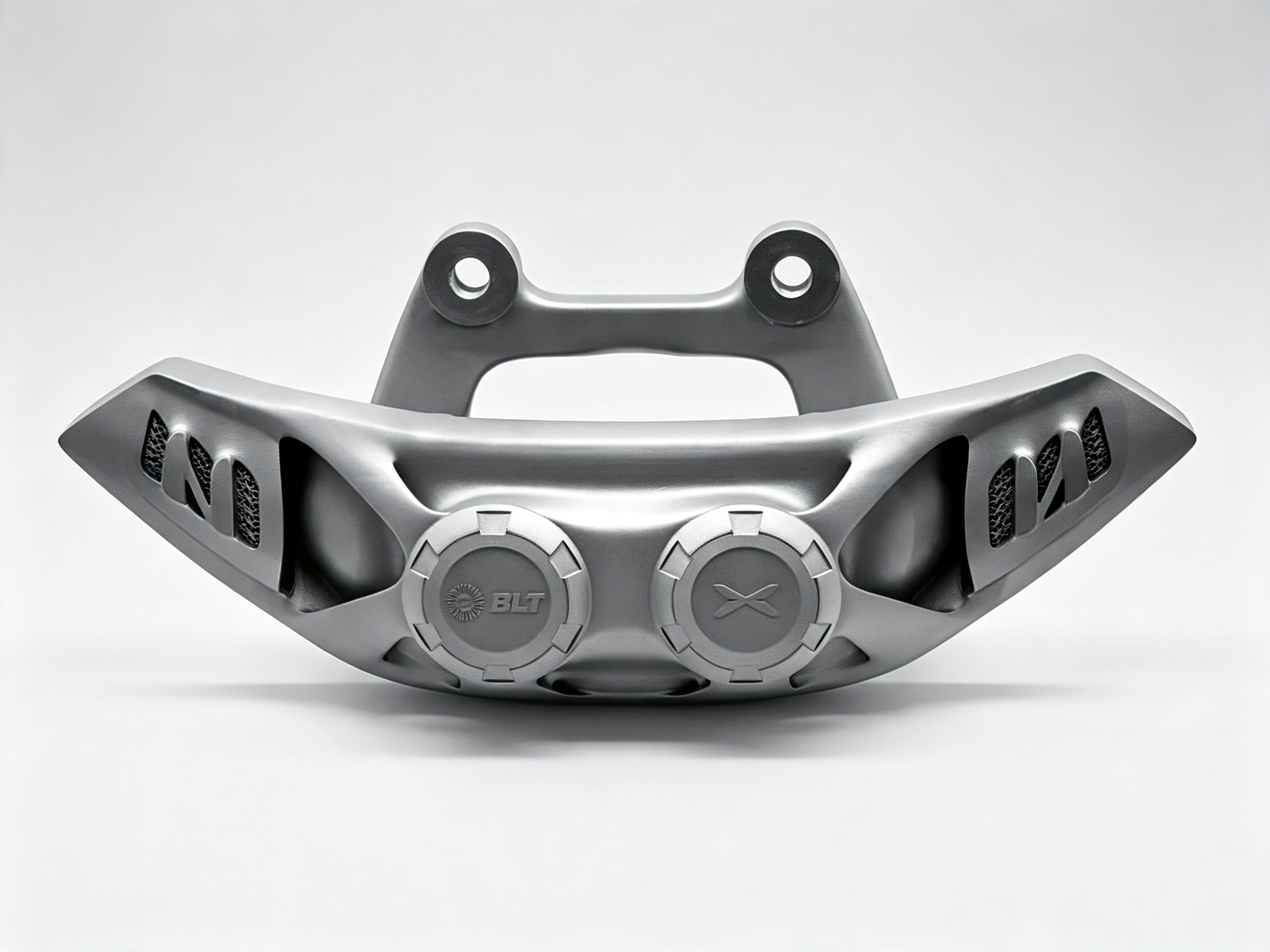

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK example page — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal AMمثال · قيد التأكيد
MaterialAlSi10Mg-class (example)مثال · قيد التأكيد
LoadsBraking reaction (discuss)مثال · قيد التأكيد
FacesMill mounting earsمثال · قيد التأكيد
Topology-looking arms
Organic arms look efficient but still need printable thickness and inspectable sections. Provide loadcases in the RFQ if you want engineering review comments.
- Mill the caliper and upright faces
- Keep grease and sensor clearances in the CAD
No braking performance numbers are stated here.
مثال · قيد التأكيد
Next step
هل لديك دور مشابه ؟
رفع CAD والرسومات. يقوم المهندس بمراجعة المواد والتفاوتات والتشطيب قبل التسعير.
